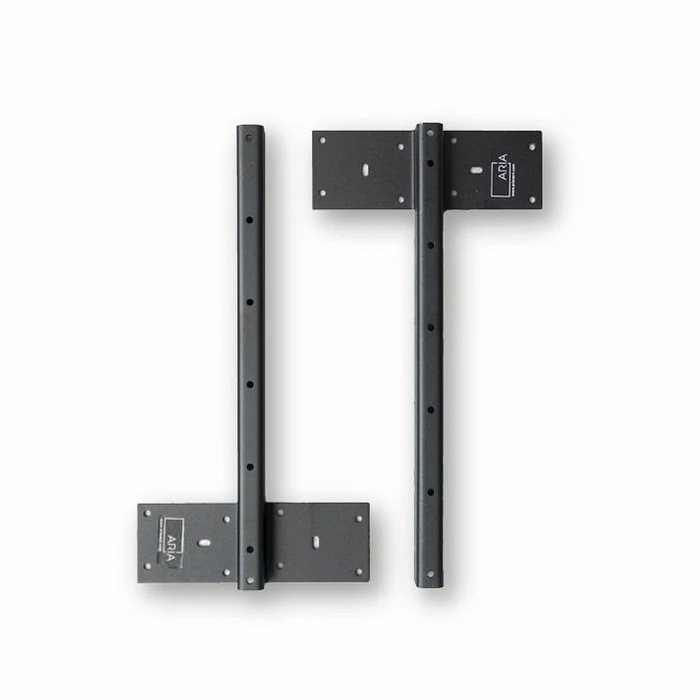

Fittes Brack Kit [Luxe]

Structural support kit for floating shower seats, suspended shelving/furniture, and more. It’s modular design can be combined to accommodate structures with longer spans. Kit contains two brackets and two sets of screws.

Features

• Time saving installation for floating bench/shelf
• Highest rated capacity vs. competitors (up to 350lbs per Brack-14)
• Modular application
• Combine kits as necessary [recommend 1 kit per 16” span – will vary by project]
• Additional 2 3/4″ inch screws are required if combining kits. This is not included with the purchase of this product and must be sourced outside of Fittes
• Material – galvanized sheet metal with a long lasting powder coating (8 gauge)
• Recommended span between brackets is 16″ on centre. Depending on weight of finishing material and application, span can vary.
• Each bracket is rated to hold 350 lbs.
• Studs must be a minimum of 2″x4″
• Install is best done by a Pro.

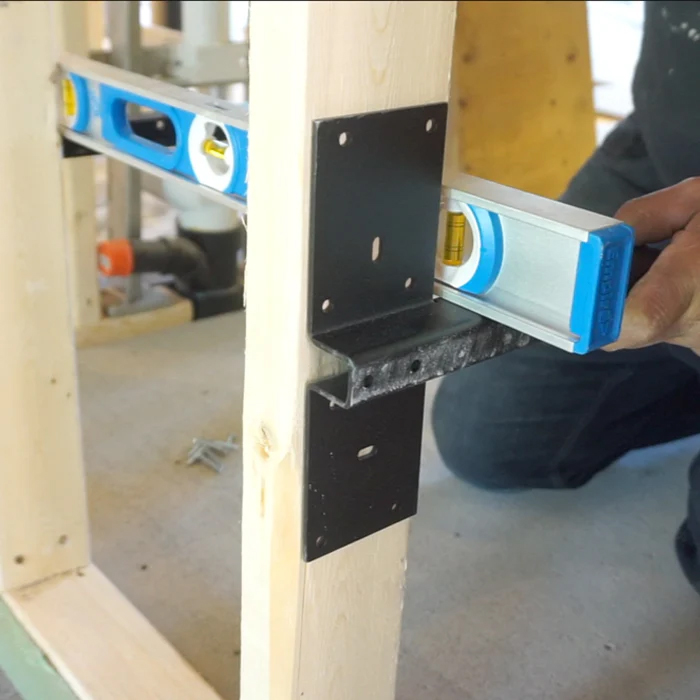

At what point are these brackets installed in the build process?
Brackets must be mounted at the rough-in stage. You must have access to the studs inside the framed wall to properly mount.

What is this used for?
The Brack Kit [Luxe] is a structural support for any application where there is an engineered suspended structure. (ie. floating shower seat, shelves, vanity, etc.)

Can I use foam board in between the brackets?
No – foam board is not structurally sound. You must use a structurally sound material (ie. 3/4″ plywood, aluminum honeycomb, solid wood, etc.)

For shower application, can I tile directly on top of the engineered seat?
No – you absolutely must waterproof prior to tiling.

Can I fasten the brackets on a 2×2 stud?
No – a minimum 2×4 stud in required. 2×6, 2×8, studs are also compatible.

Can I fasten the brackets to metal stud?
No – wood studs only.

Install Method: Recommended span between brackets is 16" on centre. Depending on weight of finishing material and application, span can vary., Studs must be a minimum of 2"x4"
